conmat: Programmatic generation of synthetic contact matrices

Going beyond Prem

Michael Lydeamore, Nick Tierney, Nick Golding

Department of Econometrics and Business Statistics



Contact matrices

  • Some infectious diseases are spread from contact between individuals
  • When we model disease, we need some idea of how often people contact other people
  • Typically, we turn to contact diary studies

Contact Diary Studies

Contact diary studies follow individuals and ask them:

  • how many contacts of a certain type,
  • the duration of contact,
  • the location of the contact,
  • the frequency of the contact

They are undoubtedly the gold standard for data on the number of contacts.

But they are prohibitively expensive, and logistically very challenging.

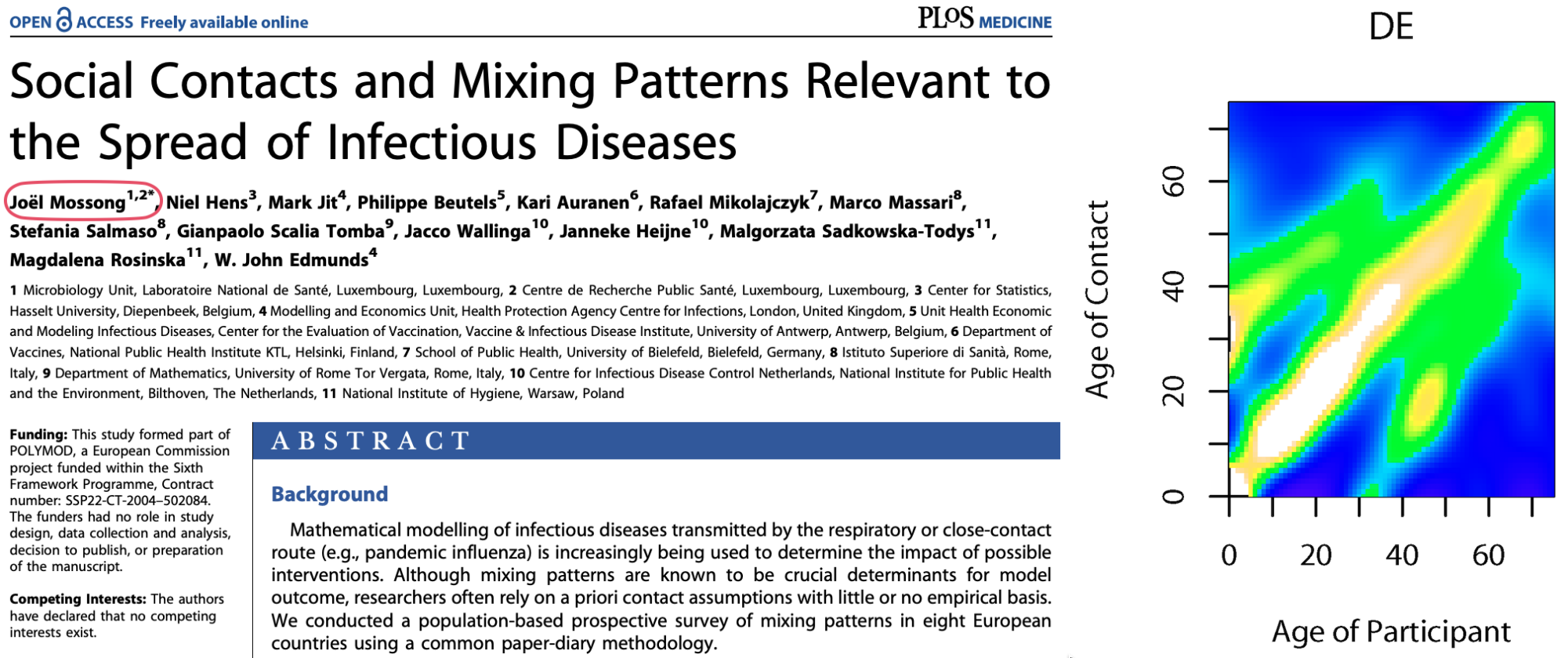

POLYMOD

Published in 2008, Mossong et. al undertook a contact diary study of 7290 participants across Europe.

It remains the most widely cited contact diary study.

Contact matrix projection

Prem et. al formed a model that predicts the number of contacts based on the age of participants.

This model then allows for prediction to settings that are outside the original POLYMOD countries.

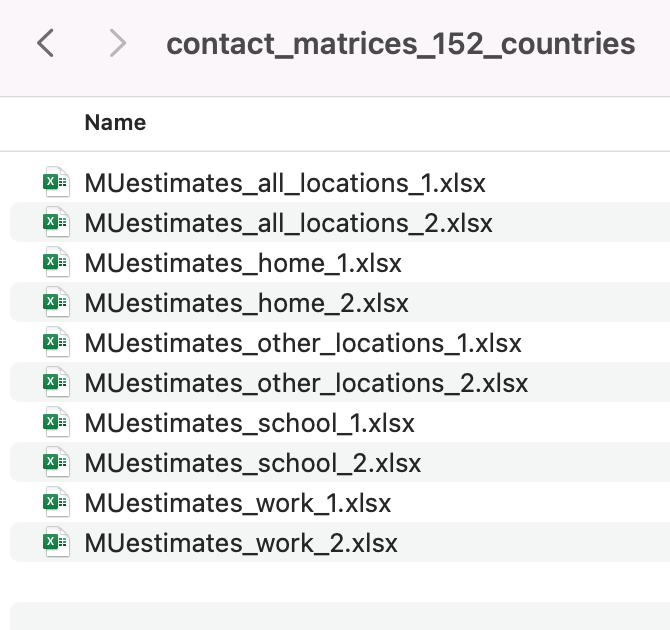

What is provided:

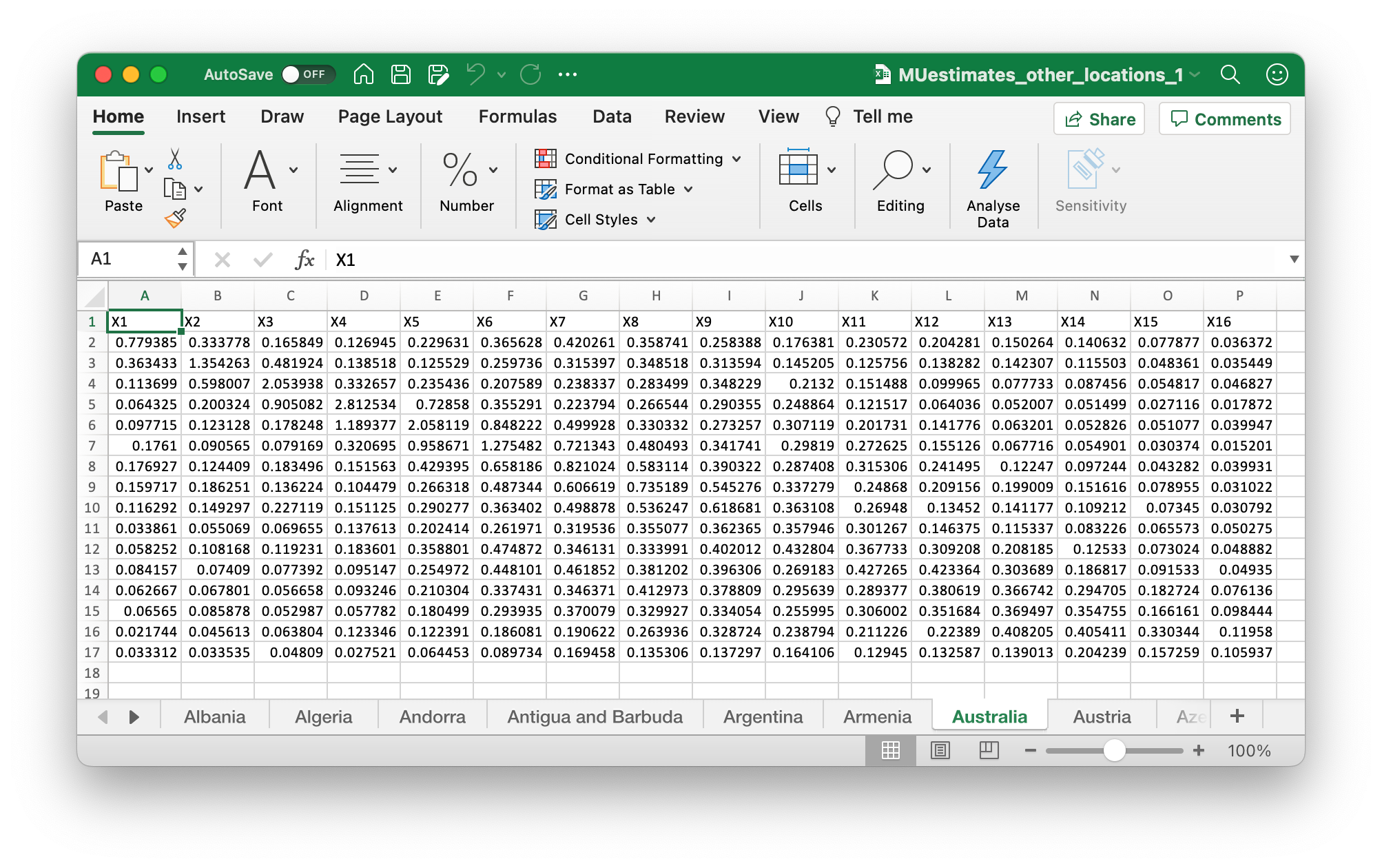

What is provided:

Estimates for 155 countries.

There is code, but it is not easily expandable to new settings.

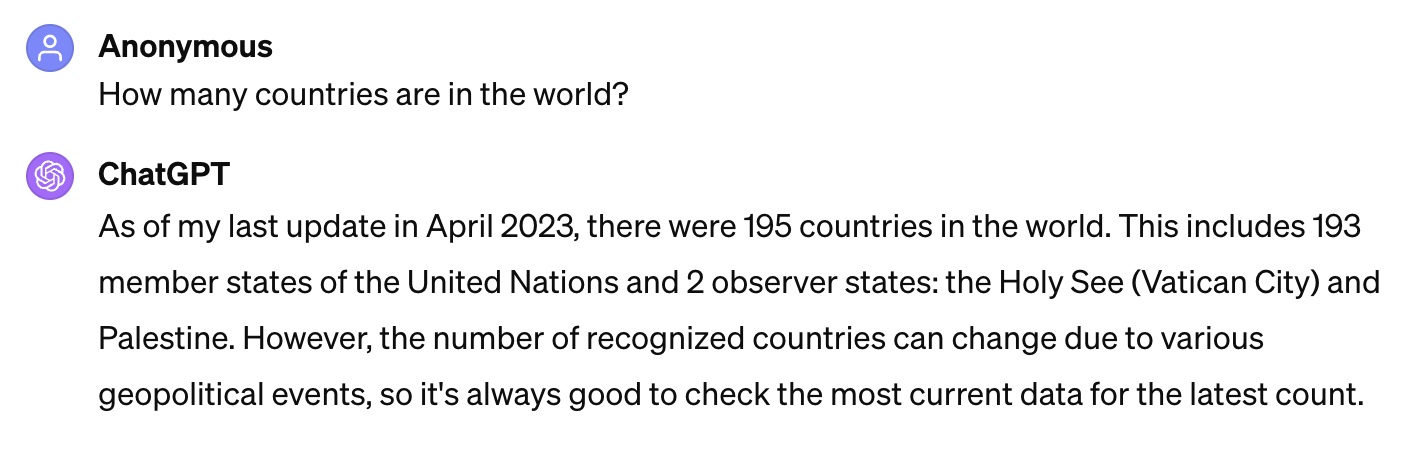

If your country isn’t in the list of 155: no estimates for you.

Caution

Australia was in the original set of 155, but was not included in the updated estimates a few years ago.

There are other more technical concerns with components of the model that probably have minor influence on the projects.

An alternative approach

We developed an open-source approach, that can be applied to any input population (big or small).

You can view the package online: https://www.github.com/idem-lab/conmat

or install using:

remotes::install_github("idem-lab/conmat")

Model details

Fundamentally, these models have pretty little to go on. They are trained on the number of contacts between two age groups \(i\) and \(j\). In conmat, this takes the form:

\[\begin{aligned} c_{ij} = \beta_0 + \beta_1(|i-j|) + &\beta_2(|i-j|^2) + \beta_3(i\times j) + \beta_4(i+j) +\\ &\beta_5\max(i, j) + \beta_6\min(i, j) \end{aligned} \]

Tip

We want to fit this as a generalised additive model, so actually we have splines on these terms to satisfy the smoothness requirements.

This is very similar to the approach by Prem et. al who perform post-hoc smoothing of the parameters after MCMC.

Model details

  • All that is needed to make predictions is the number of individuals in different age groups.
  • This is easily obtainable information from most statistics bureaus/governments.

Data sources

  • The socialmixr package has this information for most countries:
socialmixr::wpp_age("Australia", 2015)
     country lower.age.limit year population
1  Australia               0 2015    1545114
2  Australia               5 2015    1521110
3  Australia              10 2015    1416482
4  Australia              15 2015    1480341
5  Australia              20 2015    1663584
6  Australia              25 2015    1763281
7  Australia              30 2015    1753076
8  Australia              35 2015    1574157
9  Australia              40 2015    1655520
10 Australia              45 2015    1559506
11 Australia              50 2015    1569432
12 Australia              55 2015    1451869
13 Australia              60 2015    1281612
14 Australia              65 2015    1153780
15 Australia              70 2015     843695
16 Australia              75 2015     628870
17 Australia              80 2015     466797
18 Australia              85 2015     303108
19 Australia              90 2015     135089
20 Australia              95 2015      29268
21 Australia             100 2015       3855

And for inside Australia, conmat provides some ABS functions:

conmat::abs_age_lga("Melbourne (C)")
# A tibble: 18 × 4 (conmat_population)
 - age: lower.age.limit
 - population: population
   lga           lower.age.limit  year population
   <chr>                   <dbl> <dbl>      <dbl>
 1 Melbourne (C)               0  2020       4882
 2 Melbourne (C)               5  2020       3450
 3 Melbourne (C)              10  2020       2675
 4 Melbourne (C)              15  2020       9396
 5 Melbourne (C)              20  2020      38434
 6 Melbourne (C)              25  2020      38546
 7 Melbourne (C)              30  2020      25834
 8 Melbourne (C)              35  2020      15072
 9 Melbourne (C)              40  2020       8554
10 Melbourne (C)              45  2020       6753
11 Melbourne (C)              50  2020       5941
12 Melbourne (C)              55  2020       5859
13 Melbourne (C)              60  2020       5060
14 Melbourne (C)              65  2020       4443
15 Melbourne (C)              70  2020       3611
16 Melbourne (C)              75  2020       2320
17 Melbourne (C)              80  2020       1467
18 Melbourne (C)              85  2020       1459

Testing model fit: SIR Model

To test model fit, we will use a structured, SIR model. For the population in group \(i\),

\[ \lambda(t) = \beta \times C \times I(t),\] where

  • \(\beta\) represents the probability of transmission given contact (here assumed to be independent of age group)
  • \(C\) is an \(N \times N\) matrix with element \((i,j)\) representing the number of contacts from age group \(i\) to age group \(j\), and
  • \(I(t)\) is a \(N \times 1\) vector of the number of infected individuals

Testing model fit: SIR Model

Then,

\[\begin{aligned} \frac{dS}{dt} &= -\lambda(t) S I \\ \frac{dI}{dt} &= \lambda(t) S I - \gamma I \\ \frac{dR}{dt} &= \gamma I \end{aligned} \]

and the total population size is conserved (\(S+I+R = N\)).

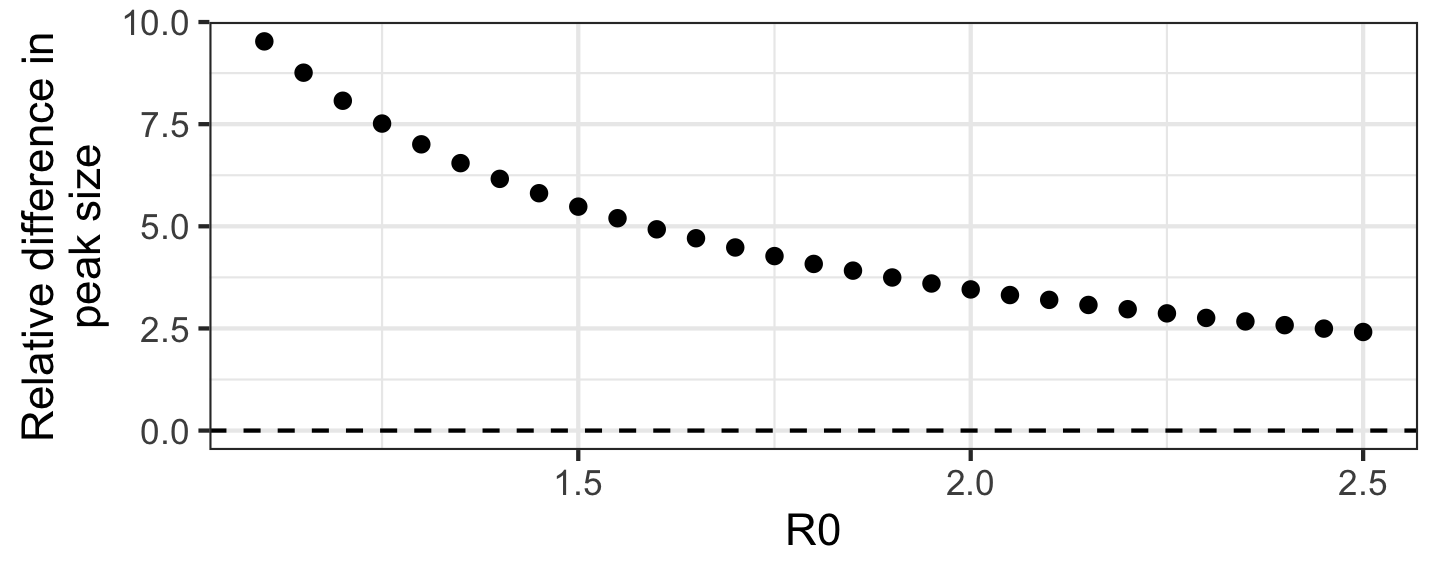

Difference in peak size compared to POLYMOD

  • Depends on R0 but contact model estimates are systematically lower
  • Possibly because of unequal sampling which isn’t accounted for in data

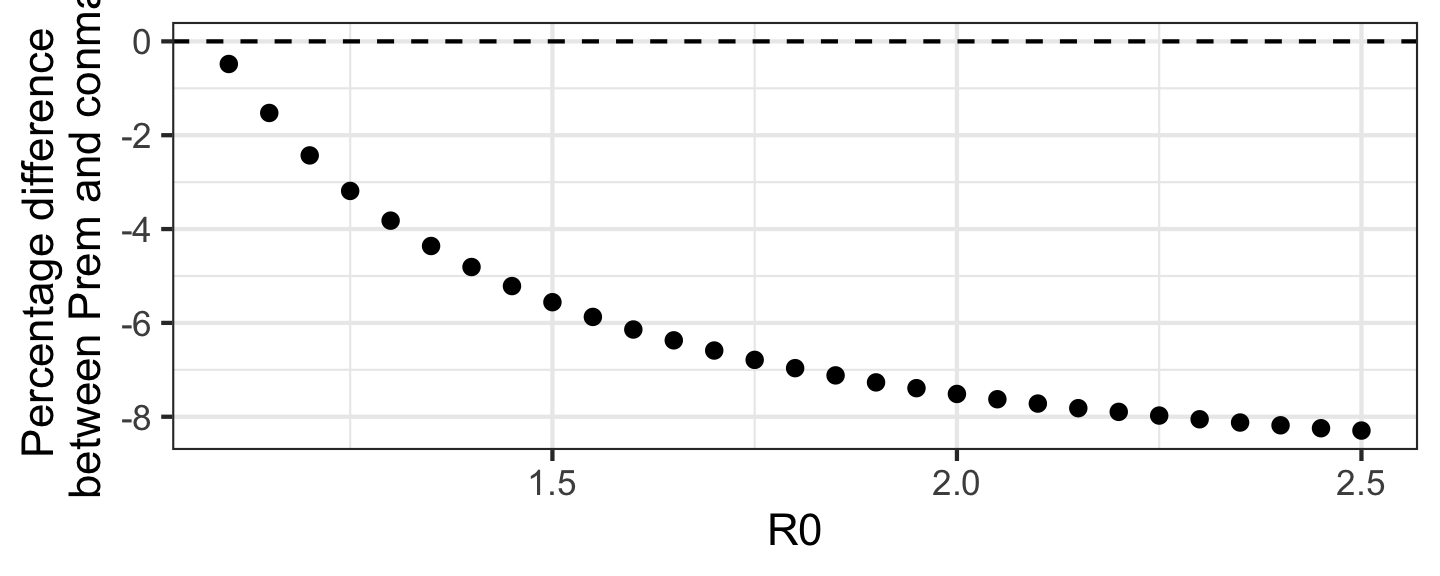

Difference in peak size compared to Prem

  • conmat method systematically gives larger epidemics compared to Prem et. al
  • Could be due to different interpretations of parameters or slightly different data sources

For a fixed R0=1.5

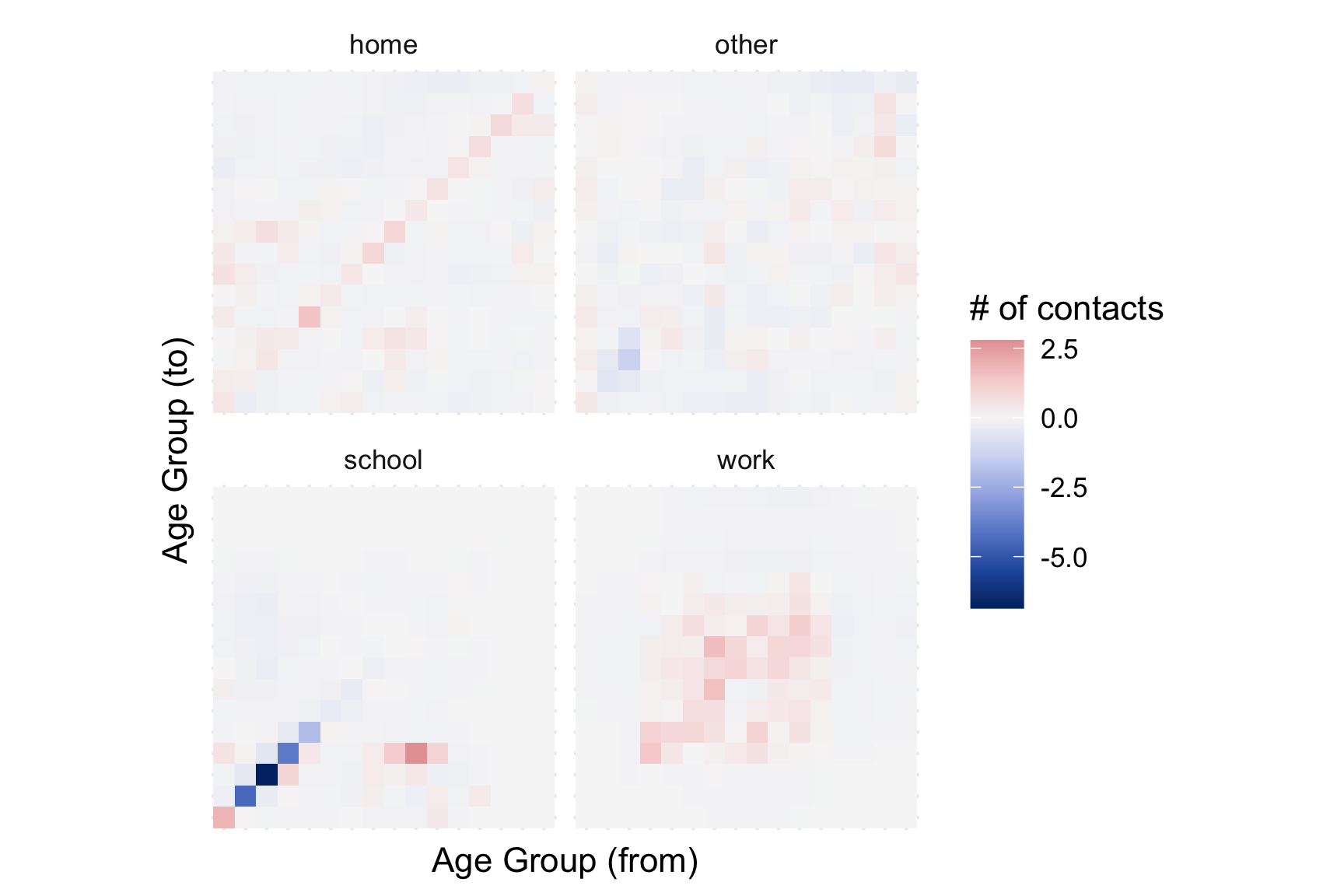

Why not just use Prem?

  • There’s no ground truth in these projects, making comparisons to almost impossible

Why should I use this? It’s easy!

Getting a contact matrix is easy:

world_data <- socialmixr::wpp_age()
population <- age_population(
    data = world_data,
    location_col = country,
    location = "Australia",
    age_col = lower.age.limit,
    year_col = year,
    year = 2015
)

population
# A tibble: 21 × 5 (conmat_population)
 - age: lower.age.limit
 - population: population
   country    year population lower.age.limit upper.age.limit
   <chr>     <int>      <dbl>           <dbl>           <dbl>
 1 Australia  2015    1545114               0               4
 2 Australia  2015    1521110               5               9
 3 Australia  2015    1416482              10              14
 4 Australia  2015    1480341              15              19
 5 Australia  2015    1663584              20              24
 6 Australia  2015    1763281              25              29
 7 Australia  2015    1753076              30              34
 8 Australia  2015    1574157              35              39
 9 Australia  2015    1655520              40              44
10 Australia  2015    1559506              45              49
# ℹ 11 more rows

Why should I use this?

Getting a contact matrix is easy:

contact_rates <- extrapolate_polymod(
    population = population,
    age_breaks = c(seq(0, 100, by = 5), Inf)
)

print(contact_rates)

Why should I use this?

contact_rates$home
                 [0,5)       [5,10)      [10,15)      [15,20)      [20,25)
[0,5)     5.802591e-01 4.813549e-01 2.402471e-01 1.620169e-01 2.321232e-01
[5,10)    4.646578e-01 7.514361e-01 4.946728e-01 1.791579e-01 1.174632e-01
[10,15)   2.269854e-01 4.841612e-01 7.948923e-01 4.093514e-01 1.390883e-01
[15,20)   1.577753e-01 1.807368e-01 4.219247e-01 6.808458e-01 3.419038e-01
[20,25)   2.432882e-01 1.275370e-01 1.542955e-01 3.679832e-01 5.807800e-01
[25,30)   4.886107e-01 2.352219e-01 1.226892e-01 1.477810e-01 3.335959e-01
[30,35)   6.641648e-01 5.188639e-01 2.431926e-01 1.258683e-01 1.448990e-01
[35,40)   4.878934e-01 6.644817e-01 4.999019e-01 2.317582e-01 1.165367e-01
[40,45)   2.582931e-01 4.382340e-01 5.778488e-01 4.314489e-01 1.936253e-01
[45,50)   1.687273e-01 2.152100e-01 3.566710e-01 4.708383e-01 3.386774e-01
[50,55)   1.689770e-01 1.393551e-01 1.740598e-01 2.883215e-01 3.645253e-01
[55,60)   1.852236e-01 1.352834e-01 1.089212e-01 1.338642e-01 2.115404e-01
[60,65)   1.559059e-01 1.373831e-01 9.632628e-02 7.402672e-02 8.744629e-02
[65,70)   9.671786e-02 1.081266e-01 8.924898e-02 5.758573e-02 4.288228e-02
[70,75)   5.304213e-02 6.517089e-02 6.630047e-02 4.931502e-02 3.157968e-02
[75,80)   3.063155e-02 3.655708e-02 3.961536e-02 3.605985e-02 2.759811e-02
[80,85)   1.701003e-02 2.046395e-02 2.097059e-02 2.037989e-02 1.984339e-02
[85,90)   6.793228e-03 9.262530e-03 9.350083e-03 8.704453e-03 9.446582e-03
[90,95)   1.485635e-03 2.547974e-03 2.852779e-03 2.654936e-03 2.853791e-03
[95,100)  1.550040e-04 3.807001e-04 5.280096e-04 5.572703e-04 6.106408e-04
[100,Inf) 4.001678e-06 1.569944e-05 2.851021e-05 3.613939e-05 4.352133e-05
               [25,30)      [30,35)      [35,40)      [40,45)      [45,50)
[0,5)     4.406440e-01 5.982784e-01 4.552888e-01 2.465532e-01 1.640271e-01
[5,10)    2.047720e-01 4.511788e-01 5.985671e-01 4.038050e-01 2.019578e-01
[10,15)   1.045372e-01 2.069748e-01 4.407441e-01 5.211368e-01 3.275955e-01
[15,20)   1.297843e-01 1.104135e-01 2.106083e-01 4.010565e-01 4.457390e-01
[20,25)   3.153175e-01 1.368029e-01 1.139796e-01 1.937146e-01 3.450794e-01
[25,30)   5.243732e-01 3.144551e-01 1.356807e-01 1.013971e-01 1.623030e-01
[30,35)   3.148155e-01 4.980613e-01 2.954307e-01 1.163616e-01 8.325675e-02
[35,40)   1.311236e-01 2.851813e-01 4.517921e-01 2.542122e-01 9.813646e-02
[40,45)   9.579716e-02 1.098093e-01 2.485196e-01 4.075377e-01 2.345534e-01
[45,50)   1.505639e-01 7.714654e-02 9.420239e-02 2.303081e-01 4.062297e-01
[50,55)   2.628503e-01 1.238732e-01 6.901509e-02 9.188973e-02 2.408397e-01
[55,60)   2.718109e-01 2.122671e-01 1.101458e-01 6.639312e-02 9.279330e-02
[60,65)   1.446095e-01 2.063714e-01 1.771966e-01 9.622107e-02 5.879160e-02
[65,70)   5.498418e-02 1.035664e-01 1.608957e-01 1.394100e-01 7.437032e-02
[70,75)   2.651484e-02 3.913120e-02 7.821431e-02 1.191438e-01 1.011711e-01
[75,80)   2.059216e-02 1.972887e-02 2.968419e-02 5.702188e-02 8.691144e-02
[80,85)   1.798484e-02 1.488353e-02 1.402809e-02 2.034797e-02 4.046827e-02
[85,90)   1.090387e-02 1.044056e-02 8.227622e-03 7.649566e-03 1.201023e-02
[90,95)   3.633180e-03 4.228353e-03 3.796308e-03 3.023101e-03 3.099944e-03
[95,100)  7.478837e-04 9.265512e-04 1.031428e-03 9.725087e-04 8.415508e-04
[100,Inf) 5.166363e-05 6.101144e-05 7.499761e-05 8.726638e-05 8.258968e-05
               [50,55)      [55,60)      [60,65)      [65,70)      [70,75)
[0,5)     1.687022e-01 1.961683e-01 0.1832025702 0.1331132999 0.0918863354
[5,10)    1.343025e-01 1.383072e-01 0.1558369131 0.1436531774 0.1089811502
[10,15)   1.641843e-01 1.089894e-01 0.1069433218 0.1160533779 0.1085141367
[15,20)   2.803165e-01 1.380623e-01 0.0847102640 0.0771805911 0.0831931640
[20,25)   3.814376e-01 2.348162e-01 0.1076993145 0.0618578959 0.0573376911
[25,30)   2.909892e-01 3.192085e-01 0.1884261254 0.0839126928 0.0509323900
[30,35)   1.372914e-01 2.495673e-01 0.2692099753 0.1582363271 0.0752533160
[35,40)   7.383723e-02 1.250082e-01 0.2231323234 0.2372997628 0.1451958462
[40,45)   9.610865e-02 7.366441e-02 0.1184517518 0.2010068440 0.2162238279
[45,50)   2.473381e-01 1.010924e-01 0.0710647072 0.1052892436 0.1802835840
[50,55)   4.428859e-01 2.631261e-01 0.0980390321 0.0637188708 0.0974964688
[55,60)   2.480418e-01 4.500001e-01 0.2527757109 0.0905781696 0.0621663591
[60,65)   8.329582e-02 2.278236e-01 0.4239011662 0.2392786574 0.0895750648
[65,70)   4.622177e-02 6.970135e-02 0.2042952564 0.3920370894 0.2228202559
[70,75)   5.618912e-02 3.800650e-02 0.0607611916 0.1770269961 0.3268365761
[75,80)   7.927543e-02 4.788099e-02 0.0330311910 0.0500190560 0.1358156077
[80,85)   6.696845e-02 6.405183e-02 0.0377136045 0.0242834312 0.0344473988
[85,90)   2.589055e-02 4.275948e-02 0.0381342648 0.0207240237 0.0126427866
[90,95)   5.199957e-03 1.089333e-02 0.0165873700 0.0135501574 0.0068514835
[95,100)  8.791712e-04 1.406558e-03 0.0027504099 0.0038776570 0.0029390575
[100,Inf) 6.969596e-05 7.464274e-05 0.0001226298 0.0002243481 0.0002723907
               [75,80)      [80,85)      [85,90)      [90,95)     [95,100)
[0,5)     0.0695641984 0.0532109912 3.471403e-02 1.729263e-02 0.0058435830
[5,10)    0.0801412678 0.0617950322 4.569054e-02 2.862937e-02 0.0138543803
[10,15)   0.0850002537 0.0619793297 4.514235e-02 3.137307e-02 0.0188069300
[15,20)   0.0797478903 0.0620835720 4.331605e-02 3.009411e-02 0.0204588230
[20,25)   0.0656899136 0.0650600964 5.059482e-02 3.481559e-02 0.0241281820
[25,30)   0.0518553897 0.0623847088 6.178521e-02 4.689333e-02 0.0312640673
[30,35)   0.0497383729 0.0516862432 5.922775e-02 5.463775e-02 0.0387773632
[35,40)   0.0722403975 0.0470254386 4.505482e-02 4.735311e-02 0.0416690143
[40,45)   0.1356627465 0.0666837054 4.095132e-02 3.686412e-02 0.0384089094
[45,50)   0.2030314881 0.1302208821 6.313202e-02 3.711697e-02 0.0326351958
[50,55)   0.1803275843 0.2098327714 1.325186e-01 6.062553e-02 0.0331983468
[55,60)   0.1026709549 0.1891888359 2.063141e-01 1.197230e-01 0.0500681572
[60,65)   0.0638369340 0.1003980607 1.658346e-01 1.643075e-01 0.0882398189
[65,70)   0.0825348941 0.0551939725 7.694638e-02 1.145984e-01 0.1062162347
[70,75)   0.1780478029 0.0622046521 3.729424e-02 4.603665e-02 0.0639608777
[75,80)   0.2379470305 0.1226411587 3.901666e-02 2.061227e-02 0.0235174032
[80,85)   0.0890341775 0.1467765207 6.996593e-02 2.039686e-02 0.0100720633
[85,90)   0.0173395593 0.0428305924 6.727551e-02 3.055193e-02 0.0085097343
[90,95)   0.0040215520 0.0054816419 1.341277e-02 2.108756e-02 0.0091691088
[95,100)  0.0014166741 0.0008357541 1.153476e-03 2.831000e-03 0.0045419826
[100,Inf) 0.0001757175 0.0000815589 5.608818e-05 9.113023e-05 0.0002356887
             [100,Inf)
[0,5)     0.0015969450
[5,10)    0.0060478325
[10,15)   0.0107494942
[15,20)   0.0140445284
[20,25)   0.0182033974
[25,30)   0.0228616687
[30,35)   0.0270291084
[35,40)   0.0320725374
[40,45)   0.0364835436
[45,50)   0.0339033995
[50,55)   0.0278587842
[55,60)   0.0281256815
[60,65)   0.0416461592
[65,70)   0.0650512285
[70,75)   0.0627494825
[75,80)   0.0308777682
[80,85)   0.0104045396
[85,90)   0.0043801633
[90,95)   0.0031243614
[95,100)  0.0024948840
[100,Inf) 0.0003784101

Why should I use this? You can use a custom population

flat_population_data <- tibble(
    country = "flatland",
    year = 2024,
    population = 1000,
    lower.age.limit = seq(0, 75, by=5)
)

flat_population <- age_population(
    data = flat_population_data,
    location_col = country,
    location = "flatland",
    age_col = lower.age.limit,
    year_col = year,
    year = 2024
)

flat_contact_rates <- extrapolate_polymod(
    population = flat_population,
    age_breaks = c(seq(0, 75, by=5), Inf)
)

Why should I use this? You can use a custom population

flat_contact_rates$home
              [0,5)     [5,10)    [10,15)    [15,20)    [20,25)    [25,30)
[0,5)    0.56828986 0.47107930 0.23528412 0.15828319 0.22562515 0.42964988
[5,10)   0.47107930 0.76196823 0.50231004 0.18255328 0.11883529 0.20659277
[10,15)  0.23528412 0.50231004 0.82299109 0.42595334 0.14470685 0.10812909
[15,20)  0.15828319 0.18255328 0.42595334 0.68440444 0.34414245 0.13015930
[20,25)  0.22562515 0.11883529 0.14470685 0.34414245 0.54276791 0.29342160
[25,30)  0.42964988 0.20659277 0.10812909 0.13015930 0.29342160 0.46253966
[30,35)  0.58525292 0.45701473 0.21462152 0.11113527 0.12706493 0.27630913
[35,40)  0.44529458 0.60639263 0.45689173 0.21281962 0.10667273 0.11928571
[40,45)  0.24127232 0.40933635 0.53934055 0.40417570 0.18192135 0.08953615
[45,50)  0.16037541 0.20465635 0.33875107 0.44747109 0.32351471 0.14362854
[50,55)  0.16492113 0.13600777 0.16964705 0.28029573 0.35573859 0.25736993
[55,60)  0.19180402 0.14014100 0.11268901 0.13779345 0.21749363 0.28104124
[60,65)  0.17876427 0.15784117 0.11080587 0.08487633 0.09950725 0.16466518
[65,70)  0.12947242 0.14506103 0.12018401 0.07774984 0.05748962 0.07309408
[70,75)  0.08932050 0.10972788 0.11192484 0.08381432 0.05375817 0.04473290
[75,Inf) 0.05512666 0.06576018 0.07106603 0.06492533 0.05030197 0.03782410
            [30,35)    [35,40)    [40,45)    [45,50)    [50,55)    [55,60)
[0,5)    0.58525292 0.44529458 0.24127232 0.16037541 0.16492113 0.19180402
[5,10)   0.45701473 0.60639263 0.40933635 0.20465635 0.13600777 0.14014100
[10,15)  0.21462152 0.45689173 0.53934055 0.33875107 0.16964705 0.11268901
[15,20)  0.11113527 0.21281962 0.40417570 0.44747109 0.28029573 0.13779345
[20,25)  0.12706493 0.10667273 0.18192135 0.32351471 0.35573859 0.21749363
[25,30)  0.27630913 0.11928571 0.08953615 0.14362854 0.25736993 0.28104124
[30,35)  0.43869100 0.26005794 0.10254775 0.07332365 0.12101602 0.22021310
[35,40)  0.26005794 0.41225918 0.23226955 0.08961730 0.06739027 0.11438638
[40,45)  0.10254775 0.23226955 0.38043054 0.21889793 0.08962625 0.06884477
[45,50)  0.07332365 0.08961730 0.21889793 0.38628120 0.23490447 0.09578732
[50,55)  0.12101602 0.06739027 0.08962625 0.23490447 0.43255518 0.25611626
[55,60)  0.22021310 0.11438638 0.06884477 0.09578732 0.25611626 0.46618257
[60,65)  0.23655846 0.20418776 0.11121066 0.06761476 0.09516248 0.26086699
[65,70)  0.13798606 0.21578768 0.18859484 0.10093986 0.06227115 0.09317464
[70,75)  0.06552314 0.13088028 0.20091654 0.17270637 0.09635242 0.06459090
[75,Inf) 0.03588289 0.05306184 0.10103208 0.15531574 0.14574253 0.09020024
            [60,65)    [65,70)    [70,75)   [75,Inf)
[0,5)    0.17876427 0.12947242 0.08932050 0.06737703
[5,10)   0.15784117 0.14506103 0.10972788 0.08037355
[10,15)  0.11080587 0.12018401 0.11192484 0.08685848
[15,20)  0.08487633 0.07774984 0.08381432 0.07935318
[20,25)  0.09950725 0.05748962 0.05375817 0.06148018
[25,30)  0.16466518 0.07309408 0.04473290 0.04622945
[30,35)  0.23655846 0.13798606 0.06552314 0.04385687
[35,40)  0.20418776 0.21578768 0.13088028 0.06485336
[40,45)  0.11121066 0.18859484 0.20091654 0.12348365
[45,50)  0.06761476 0.10093986 0.17270637 0.18983035
[50,55)  0.09516248 0.06227115 0.09635242 0.17812976
[55,60)  0.26086699 0.09317464 0.06459090 0.11024474
[60,65)  0.48737980 0.27379182 0.10227898 0.07483573
[65,70)  0.27379182 0.52813388 0.29877425 0.11049744
[70,75)  0.10227898 0.29877425 0.55330597 0.29782838
[75,Inf) 0.06122924 0.09040699 0.24367777 0.41218989

Conclusion

  • Contact matrices are frequently used in infectious diseases modelling
  • Standard Prem et. al matrices are not written for re-use
  • conmat provides an interface to easily generate and update models from any data source
  • Can integrate vaccination, calculate next generation matrices, and a handful of other features

And it’s available right now

https://www.github.com/idem-lab/conmat

Acknowledgements

Telethon Kids Institute

  • Nick Tierney
  • Nick Golding
  • Aarathy Babu
  • SPECTRUM-SPARK Travel Funding
  • Department of Econometrics and Business Statistics, Monash University
